分水器

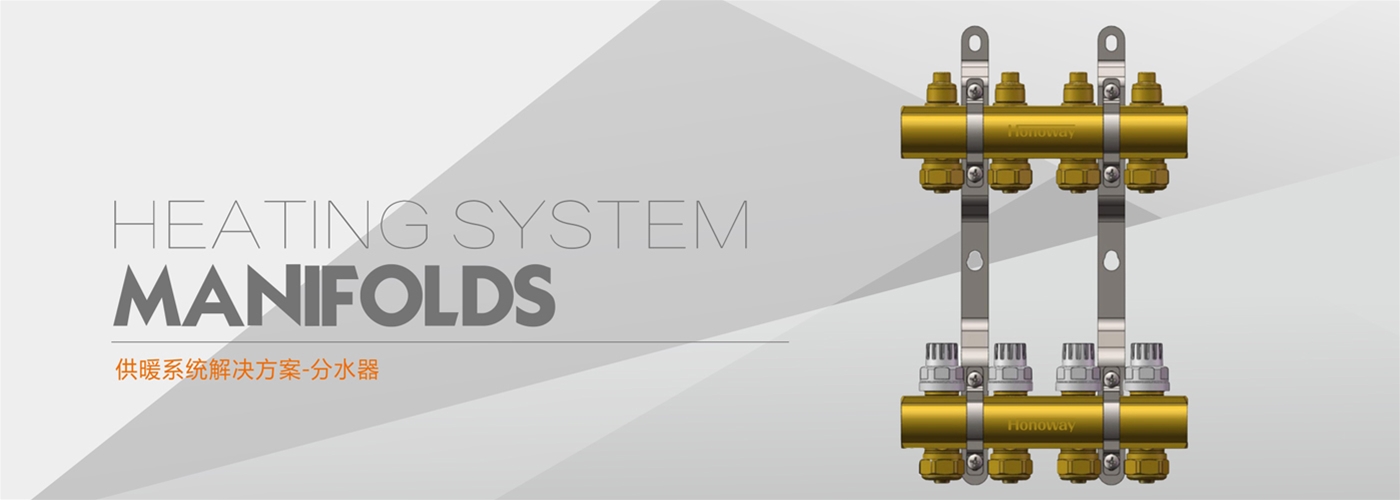

HEATING SYSTEM
MANIFOLDS
供暖系统解决方案-分水器
供暖系统解决方案霍诺威1606分集数器用于地板采暖系统和地板制冷系统中，分配和调节回路流量。产品采用优质黄铜制造，本体内径宽大，采用高位阀芯，各支管分配更加均匀。
欧洲领先设备和技术工艺。高品质挤压铜棒，密度均匀安全可靠。
The heating system solution HONOWAY1606 diversity counter is used in the floor heating system and floor cooling system to distribute and regulate the loop flow. The product is made of high-quality brass with wide inner diameter and high-level valve core, which makes the distribution of branch pipes more uniform.
内置V型调节阀芯，按需调节预设流量。
欧洲优质EPDM密封圈，安全可靠。双密封阀芯结构，杜绝后患。
阀芯高强度弹簧，超1万次反复启闭。高位阀芯，大流量，防杂质。
不锈钢支架，坚固耐用，杜绝生锈。
集水器端可选配霍诺威电热阀多种配件可供选择
Europe's leading equipment and technology. High quality extruded copper bar, uniform density, safe and reliable.

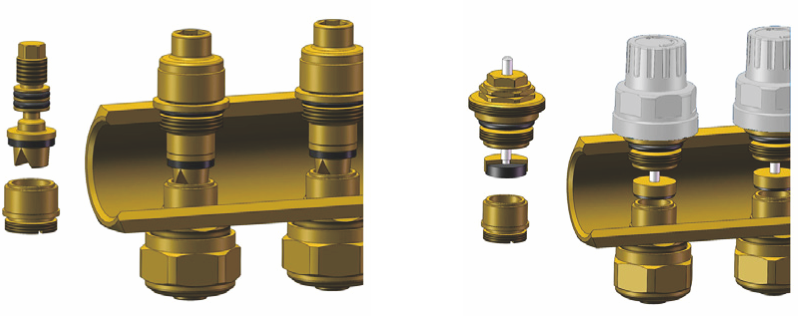

The built-in V-shaped regulating valve core can adjust the preset flow on demand.
European high quality EPDM seal ring, safe and reliable. Double seal valve core structure, no future trouble.
Valve core high strength spring, over 10000 times of repeated opening and closing. High position valve core, large flow, anti impurity.
Stainless steel bracket, durable, prevent rust.
The end of the water collector can be equipped with a variety of accessories

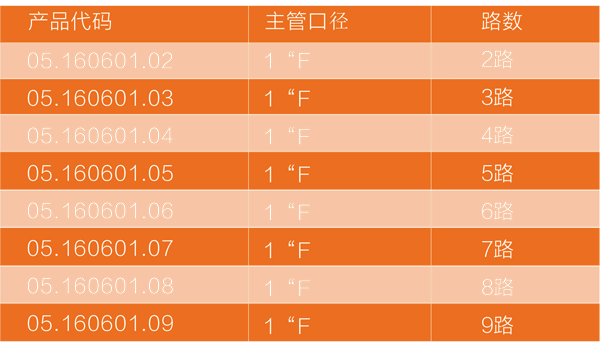

规格和型号 SPECIFICATION AND MODEL
技术参数TECHNICAL PARAMETER
主体材质：抗脱锌黄铜
适用介质：水、非复试性液体
最大工作压力：1.2MPa，
介质温度：0℃-90℃
支管接口：16/20，
支管间距：50mm,
表面处理：抛光，
Main material: dezincification resistant brass
Applicable medium: water, non retesting liquid
Maximum working pressure: 1.2MPa,
Medium temperature: 0 ℃ - 90 ℃
Branch connection: 16 / 20,
Branch pipe spacing: 50mm,
Surface treatment: polishing,
